Description

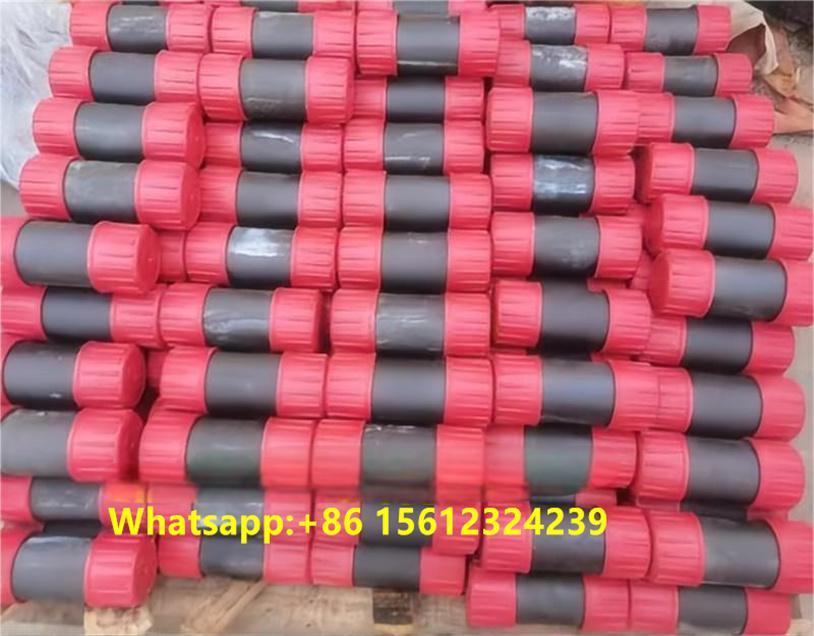

Pump Rod Seating Nipple for Tubing 2 7/8" OD EUE 8RD PIN X BOX
Seating nipple is one of components of the subsurface sucker rod pumps,including the Mechanical Top Lock Seating Nipple,Mechanical Bottom Seating Nipple,Tubing Pump two Cup Type Seating Nipple and Rod Pump Cup Type Seating Nipple.
subsurface sucker rod pumps generally refers to a plunger type oil pump driven by the reciprocating motion of the pumping rod up and down,which is one of most important pumping unit downhole tools.
We can supply different pump seating nipples as per the different API AX number as follows:
Seating nipple API 11AX number is N12-15,N12-20,N12-25,N12-30,N12-40,N13-20,,N13-25,,N13-30,N14-20,N14-25,N14-30,S22-20,S22-25,S22-30,S22-40 etc.
Rod Pump Cup type Seating nipple varied different connection as follows:
Pin x PIn
Pin x Box
Mechanical Top Lock Seating Nipple tubing size as follows:
1.9" NUE 10rd,
1.9" EUE 10rd,
2-3/8" EUE-8rd,
2-7/8" EUE-8rd,
3-1/2" EUE-8rd,
4-1/2" EUE-8rd,
4-1/2" CSG-8rd,
5-1/2" CSG-8rd,
7" CSG-8rd
